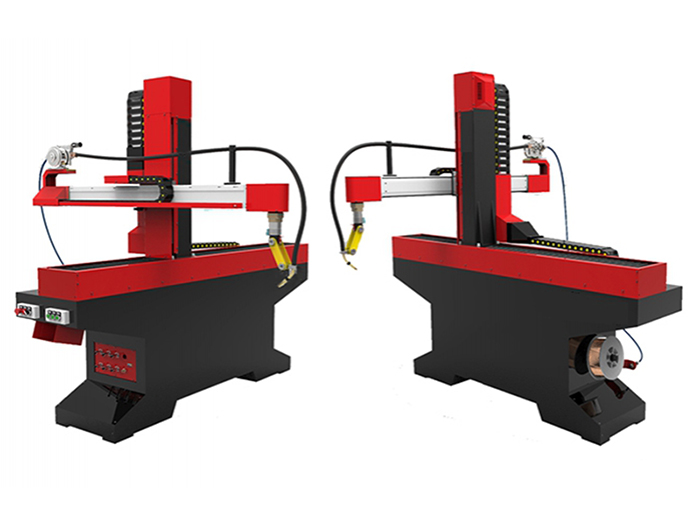

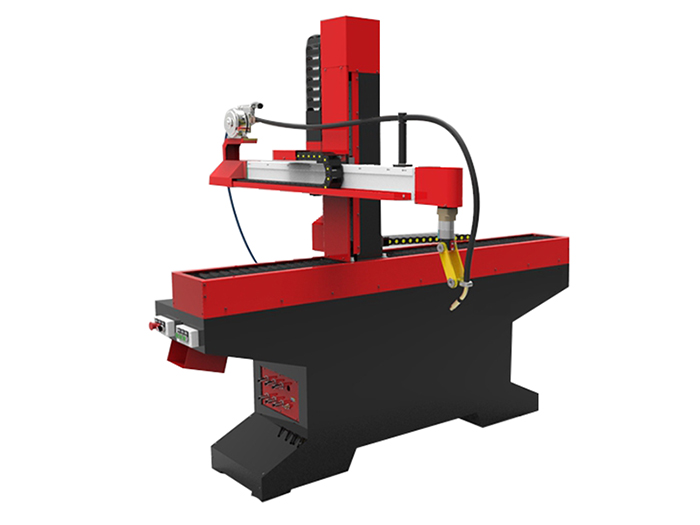

4 Axis Welding Robot, CNC Welding Robot Machine
4-axis welding robot, fabricated similar to 6-axis linkage welding robot, it is digital welding equipment allows 4 axis simultaneous operation.
Xuzheng 4-axis welding robots are capable to achieve two-dimensional or three-dimensional arc welding on different workpieces, mainly used for processing of furniture fittings, auto parts, motorcycle parts, and other parts need to be welded with curve welding seams.
Specifications
| ITEM | XZSK-1700 |
| Input Power | 220V 50HZ |
| Rated Power(KW) | 2.2 |
| X-axis Stroke(mm) | 1700 |
| Y-axis Stroke(mm) | 800 |
| Z-axis Stroke(mm) | 500 |
| R-axis Stroke(angle) | 400 |
| Dimension-Length*Width*Height(mm) | 2500*2000*2400 |
| Weight(Kg) | 570 |

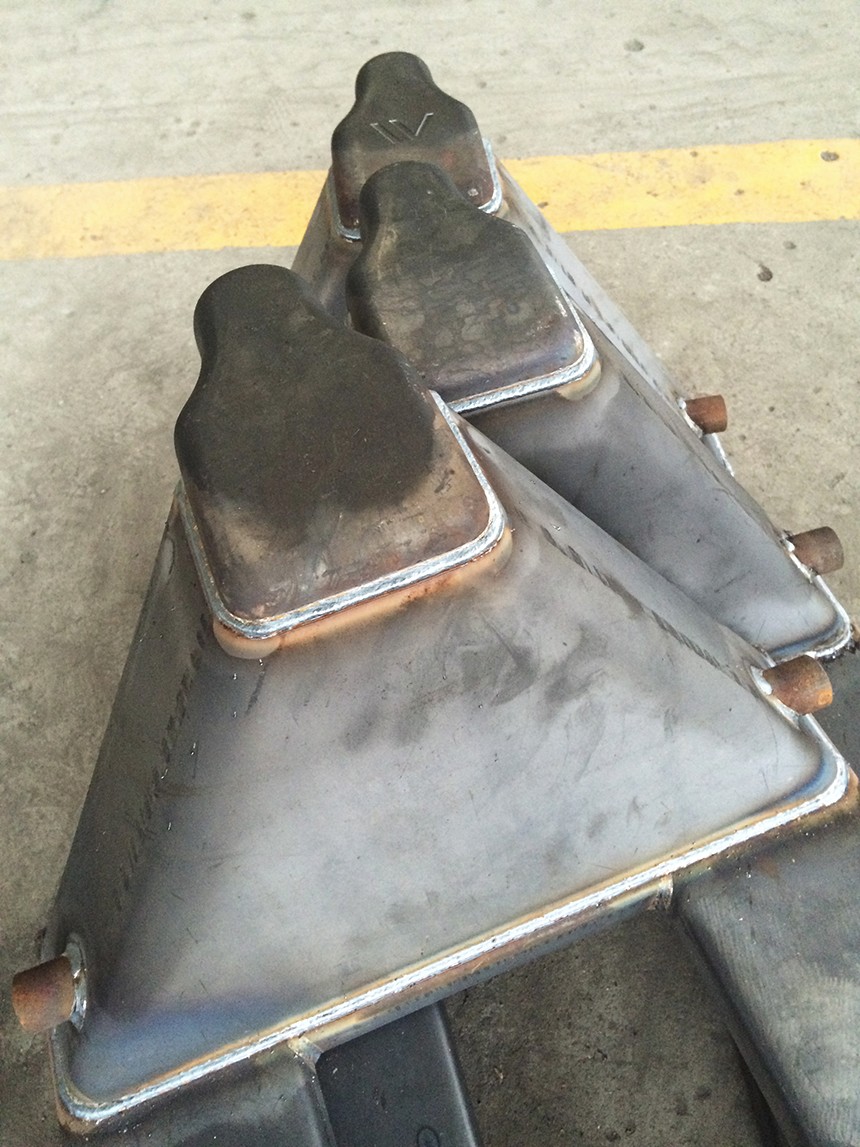

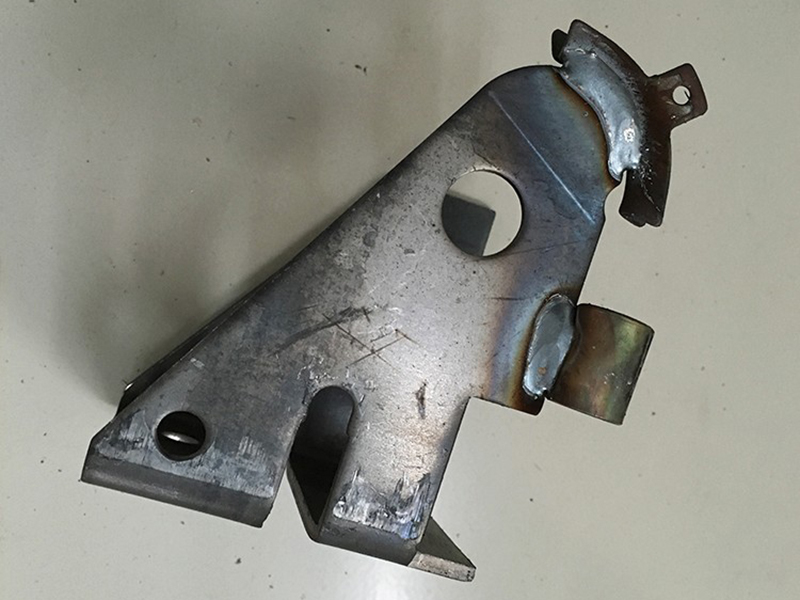

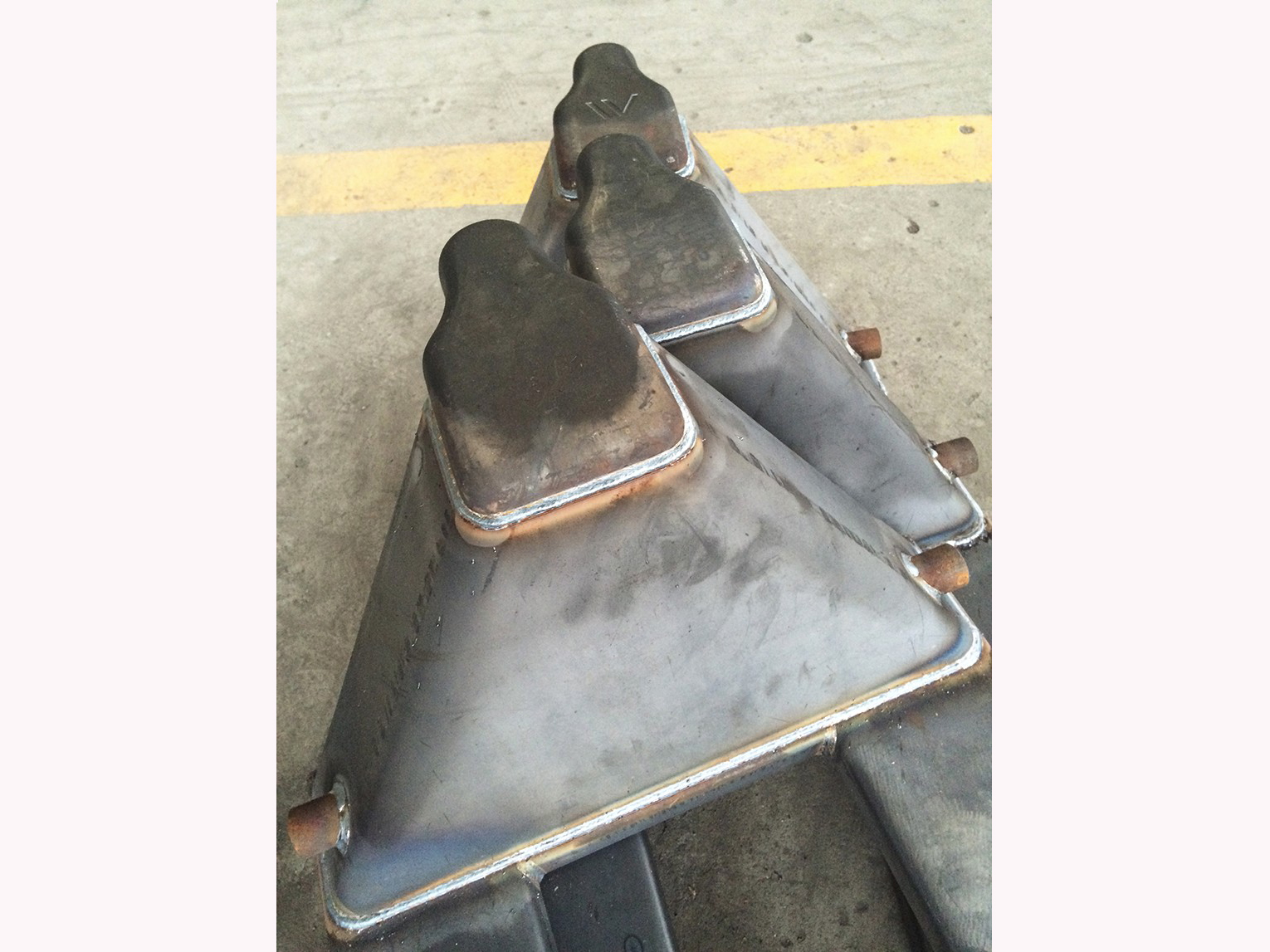

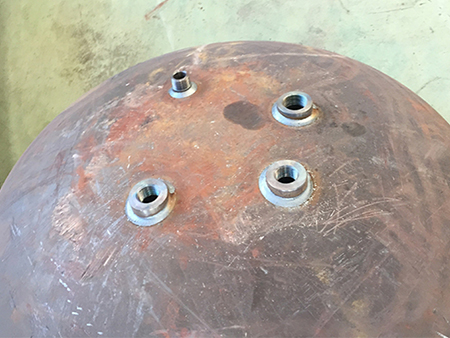

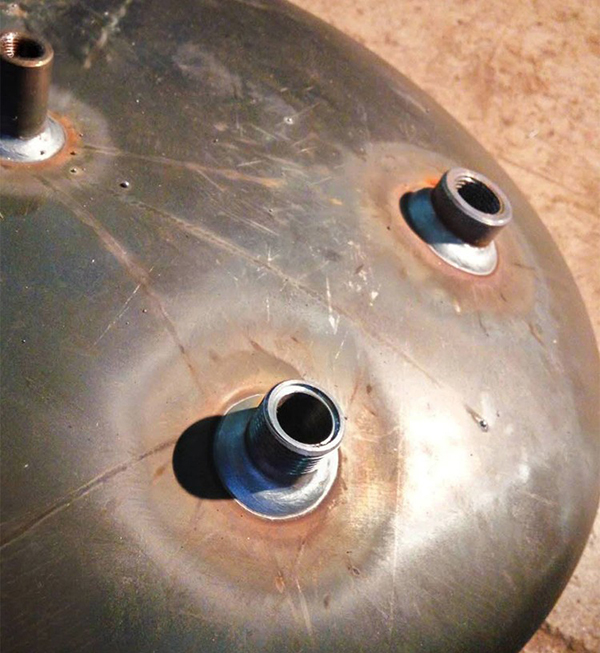

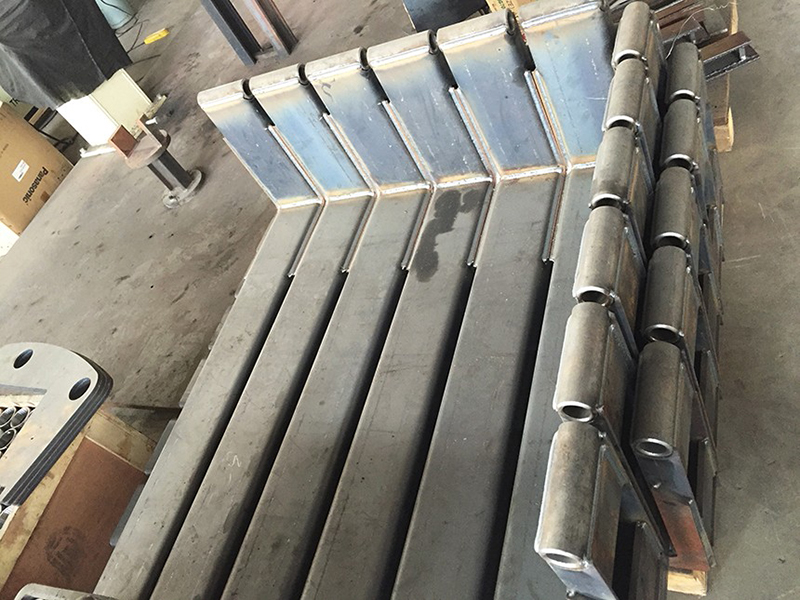

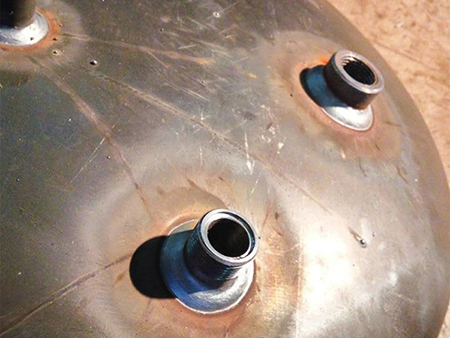

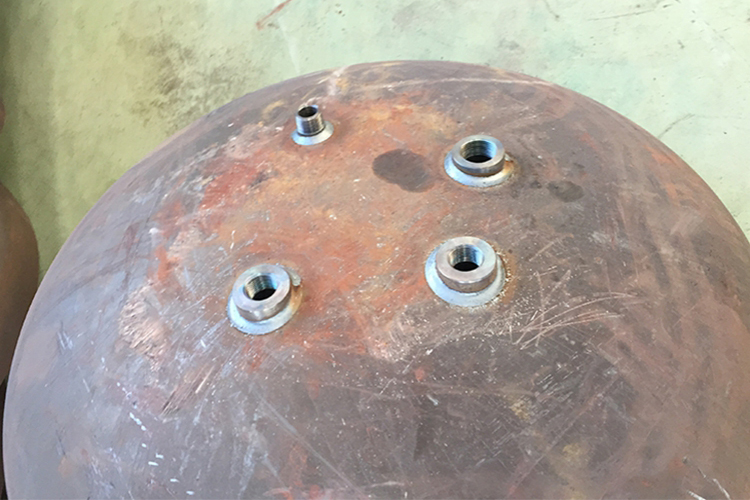

Samples
Features
- Travel carriage uses HIWIN linear rail or TBI linear rail with ball screw to ensure smooth movement and positioning accuracy of welding torch.
- Welding torch is adjustable by using leveling screws, which can be easily operated.
- Welding torch is 360° rotatable.
Xuzheng not only provides our standard seam welders in stock, but also can manufacture custom models depending on your specific welding needs, such as material to be welded, pipe diameter, seam length, etc.
